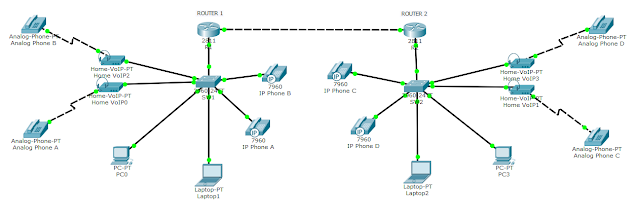

Konfigusasi IPPhone, Analog Phone dan IPComm menggunakan 2 Router

Router 2811
Switch 2960

VoIP Device
IP Phone

Analog Phone

PC

Laptop

Konfigurasi pada SW1

SW1>en
SW1#conf t
SW1(config)#int range fa 0/1-24
SW1(config-if-range)#switchport voice vlan 1
SW1(config-if-range)#ex

Konfigurasi DHCP pada R1 :

R1>en
R1#conf t
R1(config)#ip dhcp pool voice
R1(dhcp-config)#network 192.168.123.0 255.255.255.0
R1(dhcp-config)#default-router 192.168.123.1
R1(dhcp-config)#option 150 ip 192.168.123.1
R1(dhcp-config)#ex
R1(config)#ip dhcp excluded-address 192.168.123.1


Konfigurasi IP Address pada R1 :

R1(config)#int fa0/0
R1(config-if)#ip address 192.168.123.1 255.255.255.0
R1(config-if)#no sh
R1(config-if)#ex

Konfigurasi Telphony Service pada R1 :

R1(config)#telephony-service
R1(config-telephony)#max-ephone 6
R1(config-telephony)#max-dn 6
R1(config-telephony)#ip source-address 192.168.123.1 port 2000
R1(config-telephony)#auto assign 1 to 6
R1(config-telephony)#ex
R1(config)#ephone-dn 1
R1(config-ephone-dn)#number 08101
R1(config-ephone-dn)#ex
R1(config)#ephone-dn 2
R1(config-ephone-dn)#number 08102
R1(config-ephone-dn)#ex

R1(config)#ephone-dn 3
R1(config-ephone-dn)#number 08103
R1(config-ephone-dn)#ex

R1(config)#ephone-dn 4
R1(config-ephone-dn)#number 08104
R1(config-ephone-dn)#ex

R2(config)#ephone-dn 5

R1(config-ephone-dn)#number 08105
R1(config-ephone-dn)#ex

R2(config)#ephone-dn 6

R1(config-ephone-dn)#number 08106
R1(config-ephone-dn)#ex



Konfigurasi pada SW2

SW2>en
SW2#conf t
SW2(config)#int range fa 0/1-24
SW2(config-if-range)#switchport voice vlan 1
SW2(config-if-range)#ex

Konfigurasi DHCP pada R2 :

R2>en
R2#conf t
R2(config)#ip dhcp pool voice
R2(dhcp-config)#network 192.168.124.0 255.255.255.0
R2(dhcp-config)#default-router 192.168.124.1
R2(dhcp-config)#option 150 ip 192.168.124.1
R2(dhcp-config)#ex
R2(config)#ip dhcp excluded-address 192.168.124.1



Konfigurasi IP Address pada R2 :

R2(config)#int fa0/0
R2(config-if)#ip address 192.168.124.1 255.255.255.0
R2(config-if)#no sh
R2(config-if)#ex

Konfigurasi Telphony Service pada R2 :

R2(config)#telephony-service
R2(config-telephony)#max-ephone 6
R2(config-telephony)#max-dn 6
R2(config-telephony)#ip source-address 192.168.124.1 port 2000
R2(config-telephony)#auto assign 1 to 6
R2(config-telephony)#ex
R2(config)#ephone-dn 1
R2(config-ephone-dn)#number 08201
R2(config-ephone-dn)#ex
R2(config)#ephone-dn 2
R2(config-ephone-dn)#number 08202
R2(config-ephone-dn)#ex

R2(config)#ephone-dn 3
R2(config-ephone-dn)#number 08203
R2(config-ephone-dn)#ex

R2(config)#ephone-dn 4

R2(config-ephone-dn)#number 08204
R2(config-ephone-dn)#ex

R2(config)#ephone-dn 5

R2(config-ephone-dn)#number 08205
R2(config-ephone-dn)#ex

R2(config)#ephone-dn 6

R2(config-ephone-dn)#number 08206
R2(config-ephone-dn)#ex

Menghubungkan R1 dan R2

Konfigurasi IP Address pada R1 :
R1(config)#int fa0/1
R1(config-if)#ip address 192.168.125.1 255.255.255.252
R1(config-if)#no sh
R1(config-if)#ex

Konfigurasi IP Address pada R2 :

R2(config)#int fa0/1
R2(config-if)#ip address 192.168.125.2 255.255.255.252
R2(config-if)#no sh
R2(config-if)#ex

Konfigurasi Dial-Peer pada R1 :

R1(config)#dial-peer voice 1 voip
R1(config-dial-peer)#session target ipv4:192.168.125.2
R1(config-dial-peer)#destination-pattern 082..
R1(config-dial-peer)#ex

Konfigurasi Dial-Peer pada R2 :

R2(config)#dial-peer voice 2 voip
R2(config-dial-peer)#session target ipv4:192.168.125.1
R2(config-dial-peer)#destination-pattern 081..
R2(config-dial-peer)#ex
